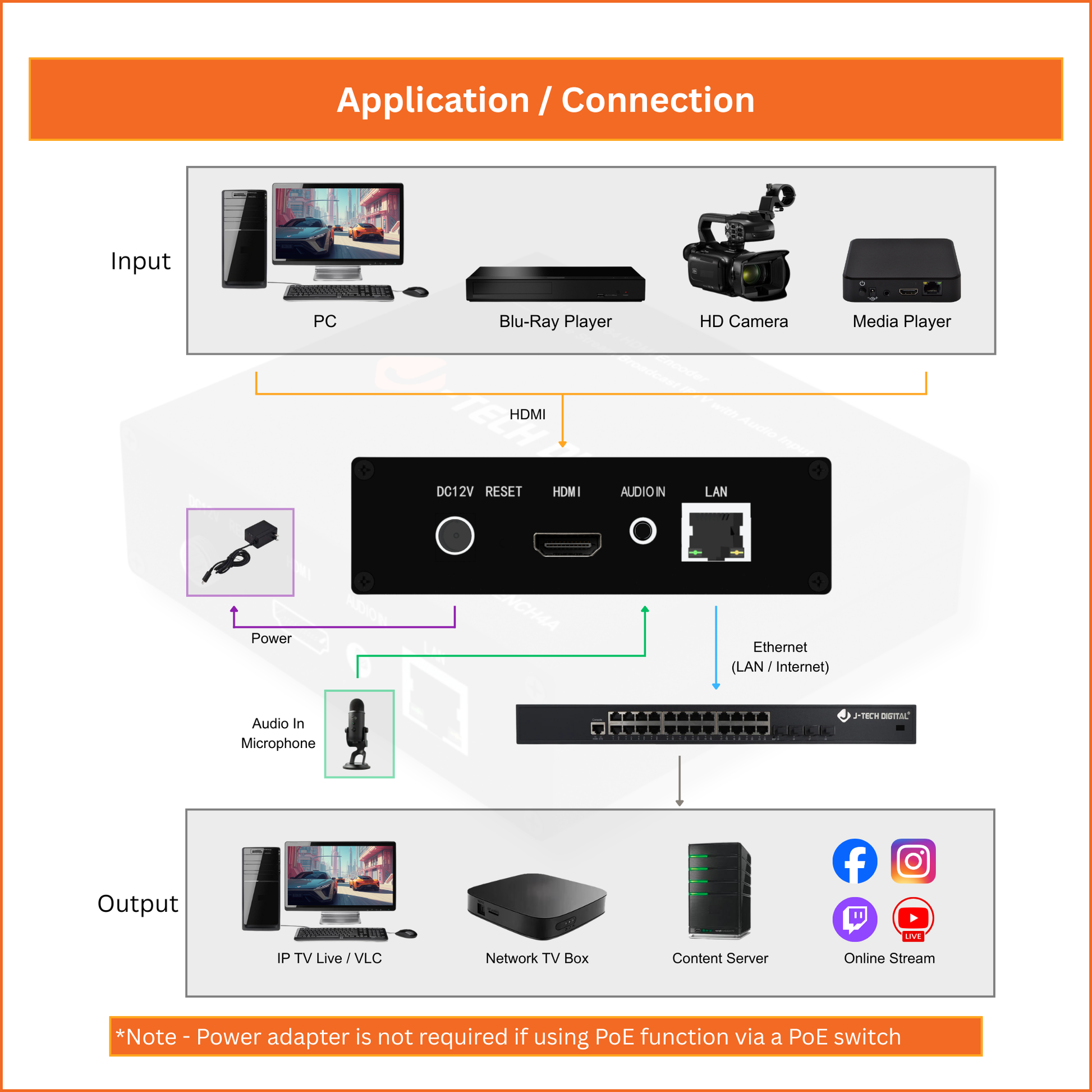

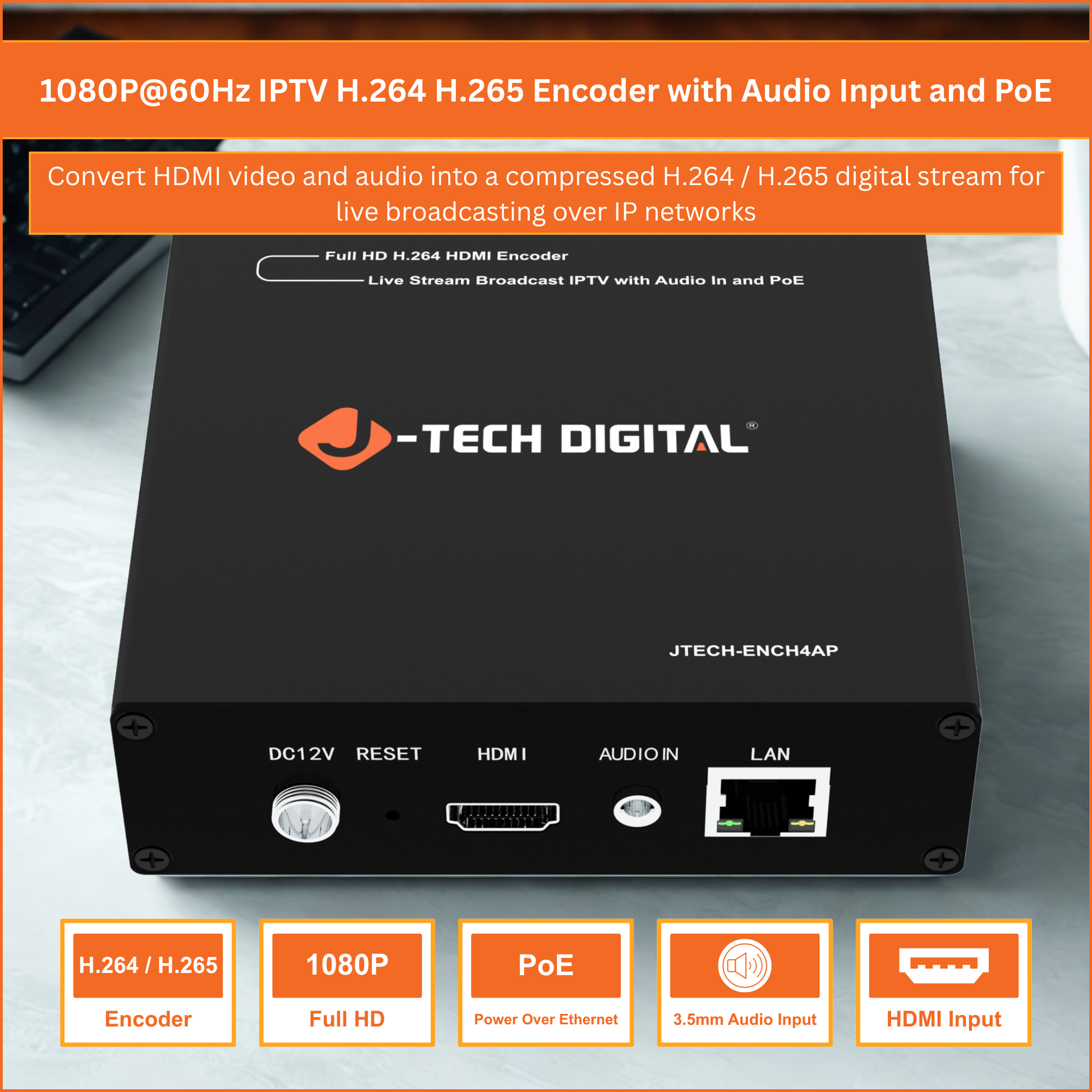

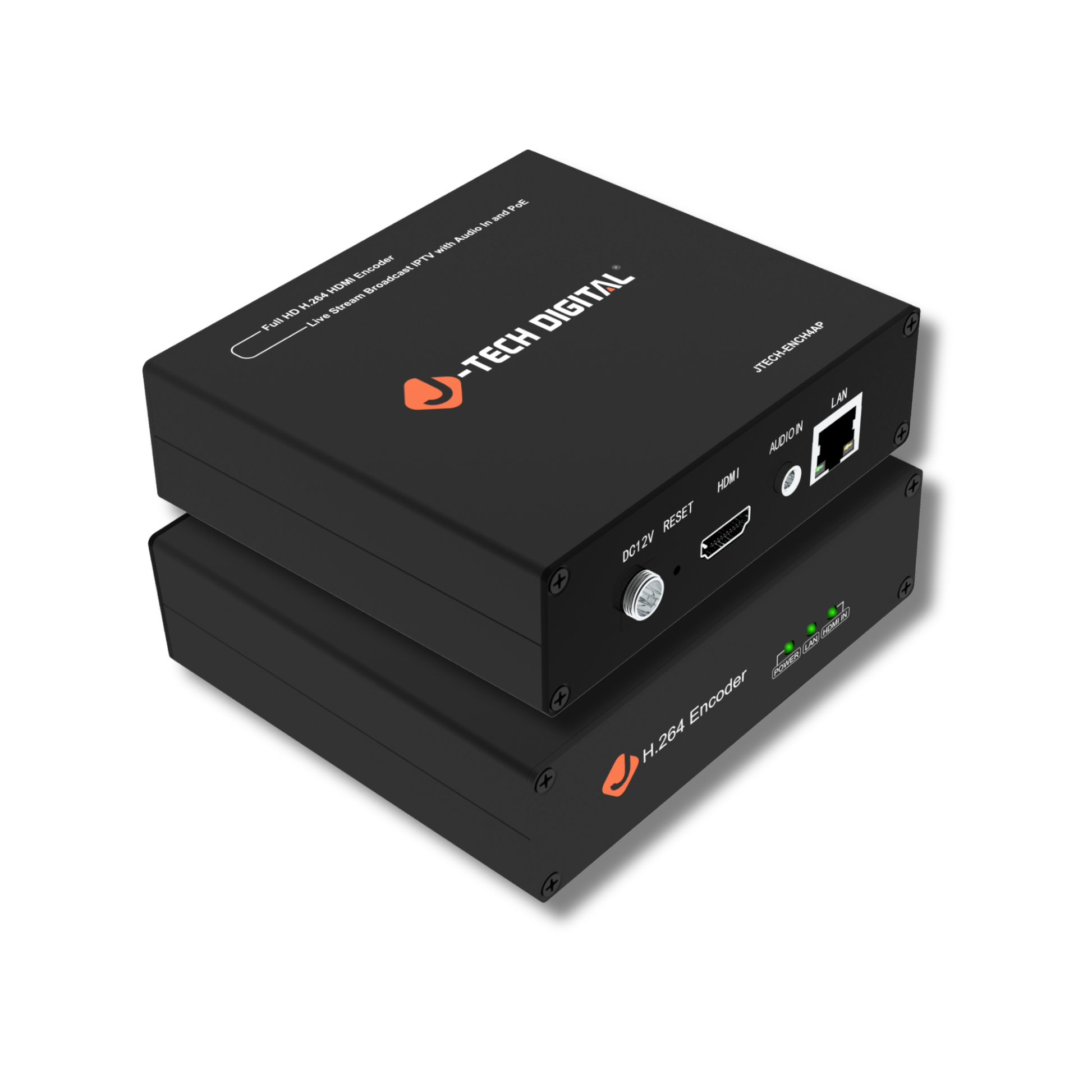

The J-Tech Digital JTECH-ENCH4AP HDMI encoder is a versatile solution for IPTV streaming and live broadcasting. It supports H.264, H.265, and MJPEG compression to deliver efficient bandwidth usage and high-quality video, along with compatibility for RTSP, RTP, RTMP, RTMPS, HTTP, UDP, TS, and ONVIF protocols for flexible network integration. The unit features HDMI input with 3.5mm analog audio embedding for synchronized audio and video, making it ideal for live events, churches, and professional AV setups. Stream in full HD 1080p at 60Hz to up to four platforms simultaneously using one main stream and three substreams. Customizable OSD, logo overlay, and a no signal image allow for a fully branded and professional viewing experience. With Power over Ethernet support, installation is simple and efficient using a single cable for both power and data, requiring a PoE network switch.
✅ Supports H.265, H.264, and MJPEG video encoding
✅ HDMI input with external audio input support

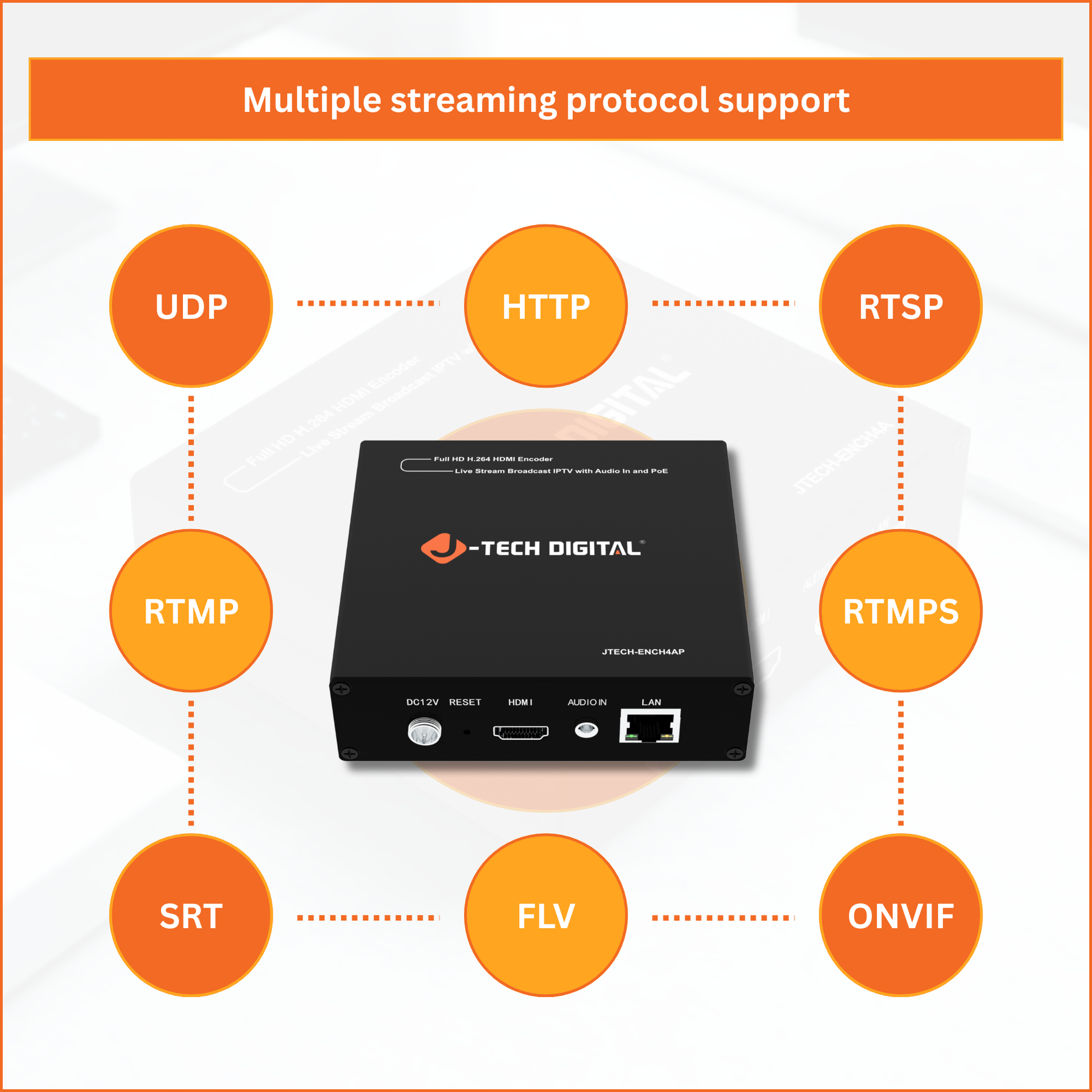

✅ Compatible with UDP, HTTP, RTSP, RTMP, SRT, HLS, FLV, and ONVIF
✅ Supports MPEG1 Audio Layer 2 encoding
✅ Adjustable CBR/VBR bitrate from 32Kbps to 32Mbps
✅ 100M Ethernet interface with full duplex support
✅ Supports up to 1080p at 60Hz video input
✅ Image parameter adjustment for video optimization

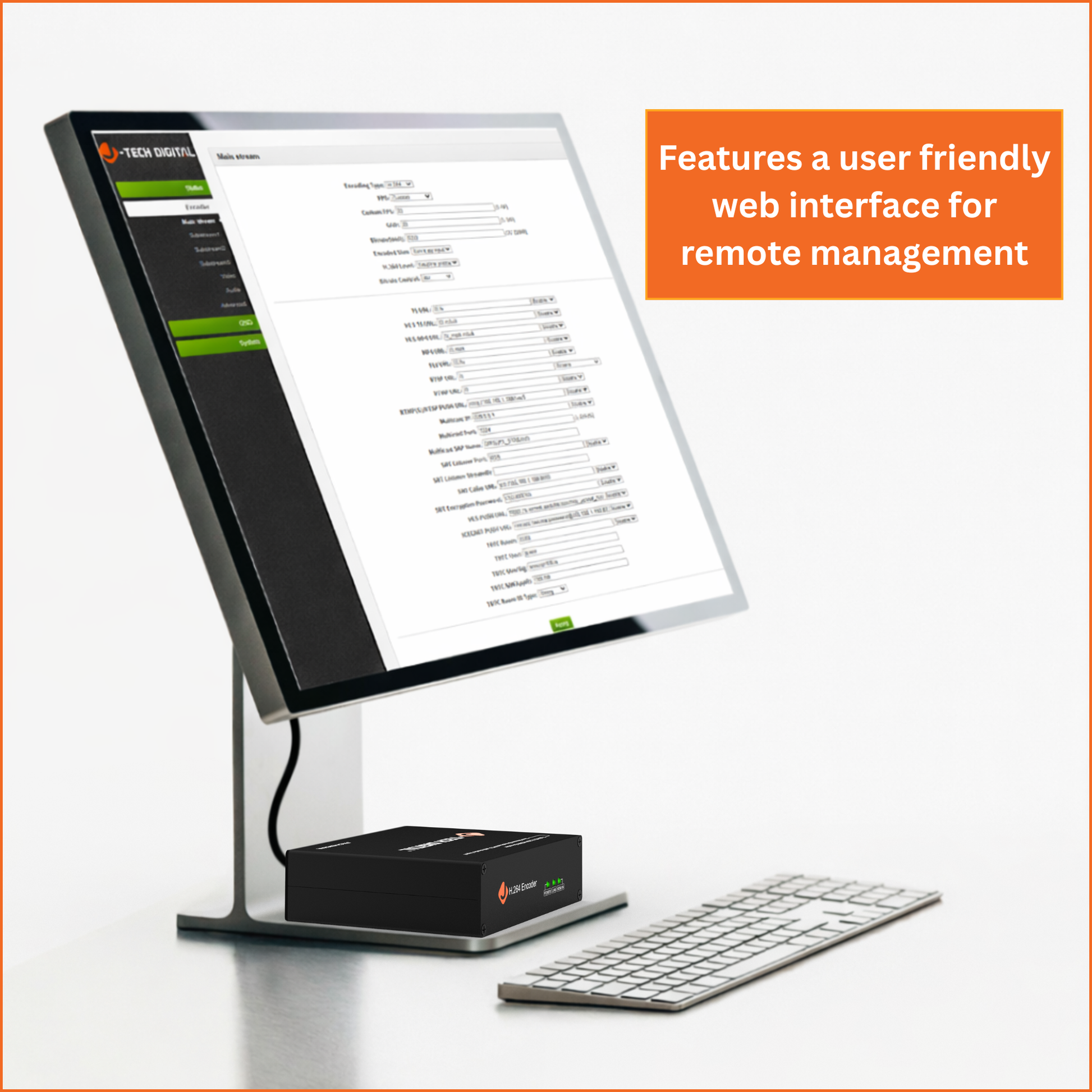

✅ Remote management via web GUI over LAN or WAN
✅ Custom resolution configuration support

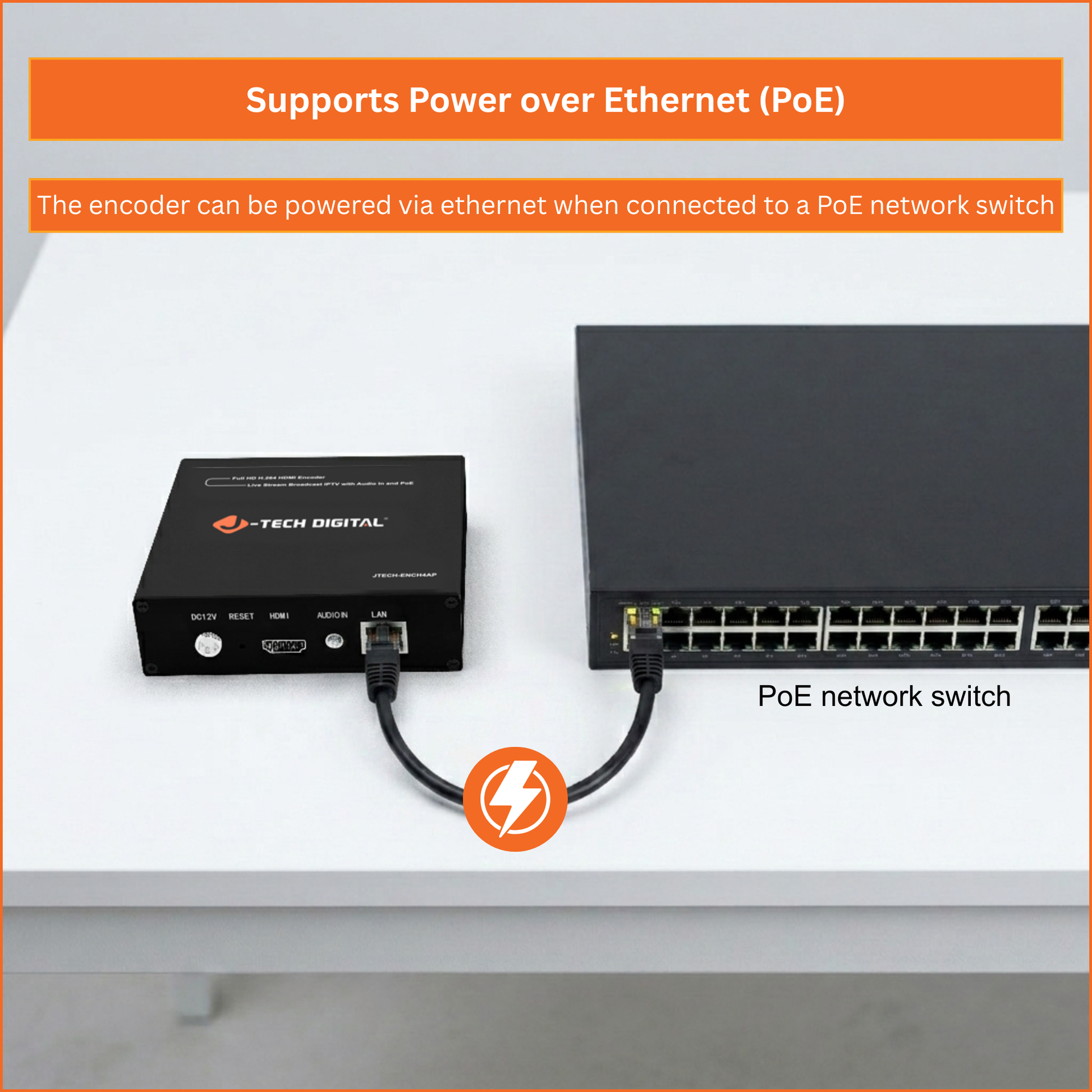

✅ Power over Ethernet support for single cable setup
